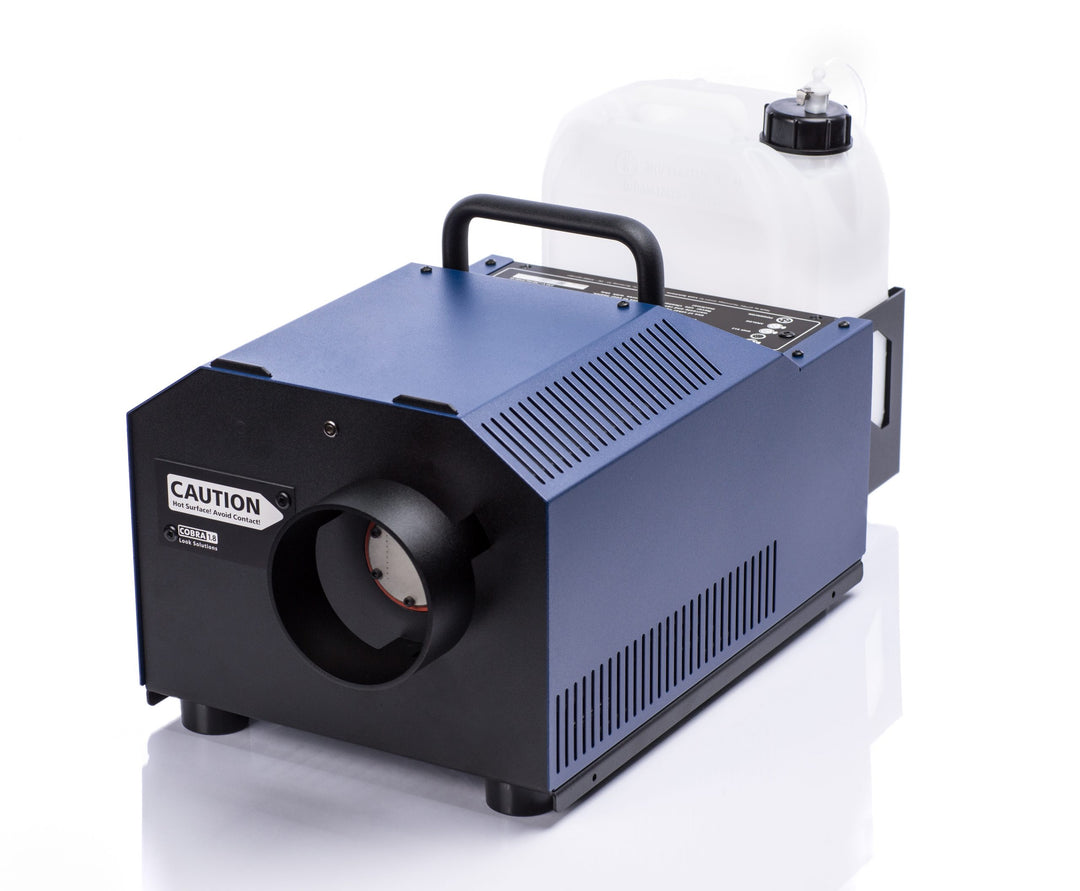

Cobra 1.8 Fog Machine
The Cobra 1.8 is the newest fog generator from Look Solutions. It’s a powerful 1800 watt machine with a proprietary and unobtrusive quiet output. The output nozzle plate features twenty tiny, laser-cut holes, which dissipates the inherent whoosh sound while maintaining a thick and robust output. With three selectable output profiles, plus customer settings, the Cobra insures complete atmospheric control. The new Touchscreen makes the handling of the Cobra 1.8 easy and intuitive. Control can be via Ethernet, DMX, or Analog, and the included RDM provides additional convenience. It is available as a 120V version only; use the Cobra 3.1 if 230V is required. The Cobra 1.8 comes with a 5 liter bottle of Regular Fog fluid.
The machine is supplied with a ducting adaptor that also functions as a protection against contact.
Uses Look Solutions Fog Fluid: Quick, Regular & Slow
Features
120V
New, extremly silent nozzle
With its newly developed nozzle the machine works very silent. The noise level at full output is 82.5 dBA (in compa- rison: the Viper 2.6 with 2600 Watt generats at full output 100.5 dBA).
The nozzle can be unscrewed and cleaned as needed.
Two pumps for constant output
The use of two pumps ensures a very constant fog output at any pump level.
Therefore the continuous output up to 30% pump level is regulated from one pump, levels from 31% to 100% are re- gulated by a second, more powerful pump.
New Touchscreen
All adjustments can be made easily and intuitive via the big Touchscreen with simple menu navigation.
New controls
Beside the stand-alone, analogue and DMX 512 control, the machine can also be operated via Ethernet (Artnet and sACN).
RDM-capable
The Cobra 1.8 is equipped with the following RDM-features: — Status: Ready, Re-heating, Error messages (E-1, E-2 etc)
Newly developed, extremely silent nozzle
- Constant, Steady Output
- DMX, Ethernet, RDM
- Made in Germany
Finest adjustments of the output
Digital technology enables ne adjustments of the pump. In steps of 1% the output can be adjusted from 0 – 100%. Thus, any desired effect – from a tiny fog cloud to the thickest continuous fog – can be produced. This allows an individual adaptation to the dimensions of the room.
Adjustable Pump characteristic
Depending on the use of the Cobra 1.8 and the desired effect, the user can choose between four different pump characteristics: Impulse, Extended, Flood and Continuous.
The output and fogging time varies depending on the chosen pump characteristic.
Adjustable Performance curve
For nest adjustments of the pump from 0% – 30%. In these- pump levels, the performance curve can be regulated 5% up or down, if the same output is needed at several machines or the aging process in uences the output. Thus, different fog amounts can be balanced.
Internal Timer
With the internal timer, the fogging time can be adjsted in seconds, the wait time in minutes and the output in %. Once the timer is activated, the adjusted program will run until the timer is deactivated.
Working hours counter
The Cobra 1.8 is equipped with an working hours counter, that saves heating and fogging durations.
